What is Unstiffened seat connection?
Ava Lawson general

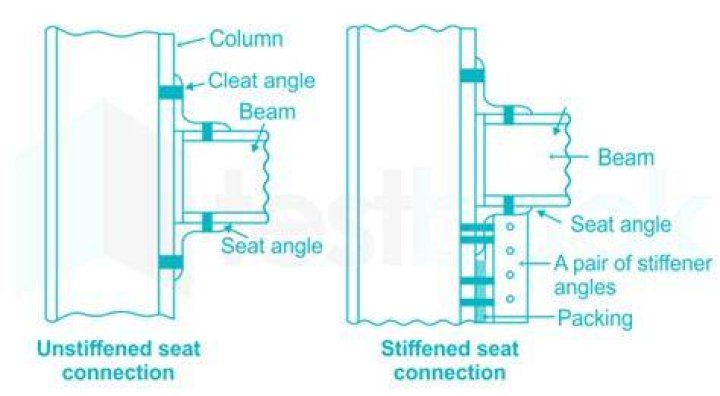

What is unstiffened seat connection? The seated connection is a horizontal angle with its horizontal leg at its top is used to. receive the beam on it, in such a case it is called unstiffened seat connection.
.
Similarly, it is asked, what is a seated connection?
In the framed type, the beam is connected to the supporting member with fittings (short angles are common) attached to the beam web. With seated connections, the ends of the beam rest on a ledge or seat, in much the same manner as if the beam rested on a wall.
Also Know, what are the two types of beam connections? Various types of beam connections are provided below:
- Bolted framed connections.
- Bolted seated connections.
- Welded framed connections.
- Welded seat connections.
- End plate connections.
- Special connections.
- Simple, rigid and semi-rigid connections.
Keeping this in consideration, what are steel connections?
Connections are structural elements used for joining different members of a structural steel frame work. ? Steel Structure is an assemblage of different member such as “BEAMS,COLUMNS” which are connected to one other, usually at member ends fastners,so that it shows a single composite unit.
What is beam to column connection?
9.1. Preview. Moment-resisting frames comprise beams, columns, and beam-column joints (Figure 9.1). A beam-column joint is defined as that portion of the column within the depth of the deepest beam that frames into the column. The beam-column connection comprises the joint plus portions of the columns,…
Related Question Answers
What are the different types of beam column connections?
Various types of beam connections are provided below:- Bolted framed connections.
- Bolted seated connections.
- Welded framed connections.
- Welded seat connections.
- End plate connections.
- Special connections.
- Simple, rigid and semi-rigid connections.
What is stiffened seat connection?
Stiffened Seat Connections In addition to the seat angle, a web cleat is provided when the beam is connected to a beam and a flange cleat is used when the beam is connected to a stanchion. The angle cleats are essential because they keep the beam stable in a vertical position and prevent it from lateral buckling. a.What is a fin plate?
A fin plate connection consists of a length of plate welded in the workshop to the supporting member, to which the supported beam web is bolted on site, as shown in the figure below. There is a small clearance between the end of the supported beam and the supporting column.What is a splice connection?
Splice connections allow connecting two collinear elements using additional plates on webs and/or flanges. They can be standalone elements or elements of a structure.What is cleat angle?
Angle cleat. A small bracket formed of angle iron, which is used to locate or support a member of a structural framework.What is a moment connections in steel structures?
A Moment Connection in structural engineering is a joint that allows the transfer of bending moment forces between a column and beam (or any other two members). This is also the reason why moment connections are called rigid connections.How many types of connections are there in steel structure?
Bolted Seated Steel Beam ConnectionThere are two major types of bolted seated connections including unstiffened bolted seat connections and stiffened bolted seat connection as illustrated in Figure-4 and Figure-5.What are the various types of connections used for connecting the structural members?
Commonly encountered simple connections include:- Beam-to-beam and beam-to-column connections using: Partial depth end plates. Full depth end plates. Fin plates.
- Column splices (bolted cover plates or end plates)
- Column bases.
- Bracing connections (Gusset plates).
What is simple connection?
Simple connections are defined as those connections that transmit end shear only and have negligible resistance to rotation and therefore do not transfer significant moments at the ultimate Limit State [BCSA 1996].Is 800 a PDF?
[PDF] IS 800 ( 2007 ) Civil Engineering. IS 800 is the basic Code for general construction in steel structures and is the prime document for any structural design and has influence on many other codes governing the design of other special steel structures, such as towers, bridges, silos, chimneys, etc.What is pinned connection?
PINNED SUPPORTSA pinned support can resist both vertical and horizontal forces but not a moment. They will allow the structural member to rotate, but not to translate in any direction. Many connections are assumed to be pinned connections even though they might resist a small amount of moment in reality.What is a shear connection?
Shear Connection - A beam bolted to a column. It is a shear only connection because the beam flanges are not rigidly connected to the column. A shear connection keeps something from sliding back and forth. A moment connection keeps something from turning in a circle.What is riveted connection?
Riveted Connections. A riveted joint is easily conceived between two plates overlapping at edges, making holes through thickness of both, passing the stem of rivet through holes and creating the head at the end of the stem on the other side.What is end plate connection?
End Plate Steel Beam Connection:The connection should transmit vertical shear and allow beam end rotations to occur without the development of significant moments. They provide moment-resistant connections between beams and columns at the corner of frames or a moment resistant connection to elongate beams.How do you join an I beam?
How to Join Steel Beams- Determine whether or not the steel beams you are using need to be welded or bolted.
- Determine whether the splice plate needs to be bolted to the flange (underside) or the web (stem) of the steel beams.
- Fabricate a splice plate that allows the two steel beams to be joined together.
