What is UA heat exchanger?
Olivia Hensley updates

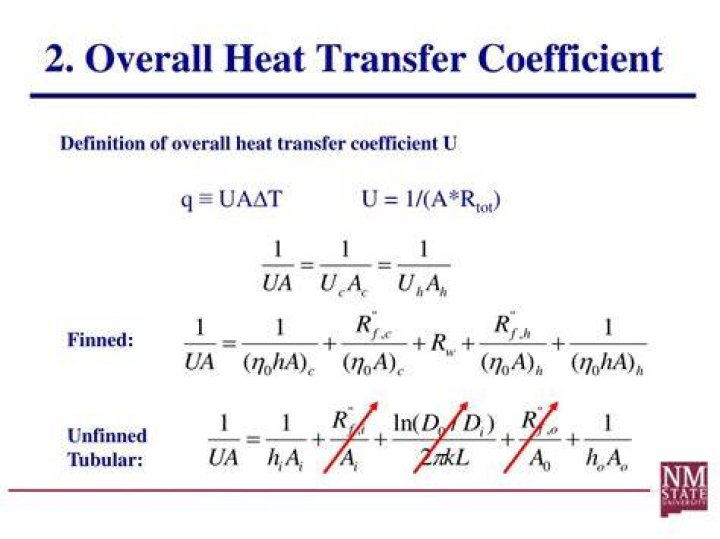

U = overall heat transfer coefficient (W/(m2K), Btu/(ft2 h oF)) A = wall area (m2, ft2) dT = (t1 - t2) = temperature difference over wall (oC, oF) The overall heat transfer coefficient for a multi-layered wall, pipe or heat exchanger - with fluid flow on each side of the wall - can be calculated as.
.
In this regard, how do you calculate heat exchanger?
4.0 – HEAT EXCHANGERS CALCULATIONS:
- The main basic Heat Exchanger equation is: Q = U x A x ΔTm =
- The log mean temperature difference ΔTm is: ΔTm =
- (T1 – t2) – (T2 – t1) = °F.
- T1 = Inlet tube side fluid temperature; t2 = Outlet shell side fluid temperature;
- ln (T1 – t2) (T2 – t1)
Beside above, how does mass flow rate affect heat transfer? In other words, the rate of heat transfer is directly proportional to mass flow rate. If you increase the flow rate, you will then increase the rate of heat transfer. Then, from the relationship above, increasing the mass flow rate must result in a smaller delta T because Q remains constant.
Also know, what is the effectiveness of a heat exchanger?
Heat exchanger effectiveness is defined as the ratio of the actual amount of heat transferred to the maximum possible amount of heat that could be transferred with an infinite area.
What is heat duty?
The Heat duty can be defined as the amount of heat needed to transfer from a hot side to the cold side over a unit of time. The equation to calculate the heat duty is normally written in two ways. One that can be used for sensible heat transferred, this means that the fluid undergoes no phase change.
Related Question Answers
How many tubes can be plugged in a heat exchanger?
Approximately about 9% of the tubes can be plugged. And if still more than 9-10% tubes are to be plugged then one can just do some calculations for the heat transfer and check that the required heat transfer is achieved or not.How do I calculate specific heat?
Specific Heat- For a mass m = gm = kg.
- with specific heat c = cal/gm°C = joule/gm°C,
- initial temperature Ti = °C = K = °F.
- and final temperature Tf = °C = K = °F,
- Q = calories = kcal = x 10^ calories.
- Q = joules = x 10^ joules.
What is the most efficient heat exchanger?
Each of the three types of heat exchangers (Parallel, Cross and Counter Flow) has advantages and disadvantages. But of the three, the counter flow heat exchanger design is the most efficient when comparing heat transfer rate per unit surface area. Heat transfer in a heat exchanger is by conduction and convection.Which heat exchanger is more effective?
The exchanger is performing at its best when the outlet temperatures are equal. Counter flow heat exchangers are inherently more efficient than parallel flow heat exchangers because they create a more uniform temperature difference between the fluids, over the entire length of the fluid path.Can the effectiveness of a heat exchanger be greater than one?
Answer: Effectiveness of heat exchanger is defined as the ratio of actual heat transfer rate to the maximum possible heat transfer rate. Since the actual heat transfer is always less than maximum possible heat transfer effectiveness is always less than one.What is number of passes in heat exchanger?
In a heat exchanger, the fluid flowing on the tube side can make either one pass or two or more, before reaching the outlet valve. The number of back and forth passes can be up to eight.What is NTU method for heat exchanger?
From Wikipedia, the free encyclopedia. The Number of Transfer Units (NTU) Method is used to calculate the rate of heat transfer in heat exchangers (especially counter current exchangers) when there is insufficient information to calculate the Log-Mean Temperature Difference (LMTD).What is fouling factor?
Fouling Factors in Heat Exchangers. The fouling factor represents the theoretical resistance to heat flow due to a build-up of a layer of dirt or other fouling substance on the tube surfaces of the heat exchanger, but they are often overstated by the end user in an attempt to minimise the frequency of cleaning.What is capacity ratio of a heat exchanger?
Capacity ratio (C): It is defined as ratio of minimum to maximum capacity rate of fluids being used in a heat exchanger. as cmin = mh cph and cmax = mc cpc. The fluid with lower heat capacity rate will undergo greater change in temperature as compared to fluid with higher heat capacity rate.What is the NTU?
NTU stands for Nephelometric Turbidity unit, i.e. the unit used to measure the turbidity of a fluid or the presence of suspended particles in water. The relation between NTU and suspended solids is as follows: 1 mg/l (ppm) is equivalent to 3 NTU.What is meant by NTU?
NTU means number of transfer units. It signifies that the heat transfer capacity of a given heat exchanger. NTU signifies how much number of units of heat, the given heat exchanger is capable of transferring from one fluid to other.What causes heat exchanger failure?
Overheating causes nearly all premature heat exchanger cracks. The most common cause of an overheated heat exchanger is as simple as a dirty air filter. A clogged air filter restricts airflow through the furnace, overheating the heat exchanger, and eventually resulting in stress cracks.Does pressure change in a heat exchanger?
Pressure is NOT constant in heat exchangers, because fluid flow always leads unavoidably to pressure drop as an effect of fluid friction. HOWEVER, this drop is very small, e.g., say some 1–2 bar for steam at 150 bar or 20–50 mm water column for gas at atmospheric pressure.How do you get rid of fouling in heat exchangers?
The most common methods employed are steam-blasting using high-pressure steam lines or hydro-blasting, using high-pressure water jets, to remove the surface build-up. Neither of these techniques tend to be 100% successful at removing fouling deposits and surfaces may remain rough even after treatment.What is pressure drop in heat exchanger?
When a flow is disturbed, a pressure drop (ΔP) is created, i.e. the flow pressure at the beginning of a passage is higher than at its end. Pressure drop is a phenomenon with both positive and negative consequences for the heat transfer process.How do you build a heat exchanger?
Determine NTU. Calculate the heat transfer surface area. Calculate the length of the tube or heat exchanger.
For the rating analysis:
- Calculate the capacity rate ratio.
- Calculate NTU.
- Determine the effectiveness.
- Calculate the total heat transfer rate.
- Calculate the outlet temperatures.
