Screws are generally turned into an object, like a piece of wood, so the head needs to be bigger than the surface. The shafts of bolts are not tapered, whereas many screws are tapered. The main difference between a bolt and a screw is that a typical screw can work on its own and a bolt requires a nut to secure it..
Consequently, what is difference between Stud & Bolt?
Bolts, Screws, and Studs. Bolts are usually defined as a threaded fastener intended to be mated with a nut, while a screw can engage either preformed or self-made internal threads. A stud is an externally threaded headless fastener. One end usually mates with a tapped component and the other with a standard nut.
One may also ask, what is stud nut? Wheel studs are the threaded fasteners that hold on the wheels of many automobiles. They are semi-permanently mounted directly to the vehicle hub, usually through the brake drum or brake disk. Lug nuts are fastened onto the wheel stud to secure the wheel.
Furthermore, why stud is used instead of bolts?
Studs provide the ability to obtain much more accurate torque values because the studs don't twist during tightening as do bolts. Because the studs remain stationary during nut tightening, the studs stretch in one axis alone, providing much more even and accurate clamping forces.
How do you measure a bolt for studs?
Stud Bolts general
- The length of metric Stud Bolts measured parallel to axis, is the distance from each Stud Bolt, including the point.
- To allow the use of hydraulic tensioning equipment, larger dimension studs shall be often one diameter longer than "standard". That bolts to have plastic end cap protection.
Related Question Answers
What is a stud used for?
Studs are boards that function as framing elements in your home, supporting the walls. They're spaced either 16 or 24 inches on-center (measured from center to center) along the wall and run between the floor and ceiling. Drywall or lath (for plaster walls) is attached to the edge of the studs.Are head studs better than bolts?
In other words, head studs are better suited for high-performance vehicles with greater power requirements, while head bolts are more practical for personal, everyday automobiles.How many types of bolts are there?
12
What are the different types of studs?
There are four basic stud types: - Class 1 has an interference fit at one end and a free-running thread at the other.
- Class 2 has free-running threads at both ends.
- Class 3 is a three-bolt stud, which is used in high-temperature/pressure applications.
- Class 4 is used for general-purpose applications.
What are bolts without heads called?
Socket Set or Grub Screws - are screws without a head that have an internal drive style. They are typically driven by an Allen wrench.What is stud or stud bolt?

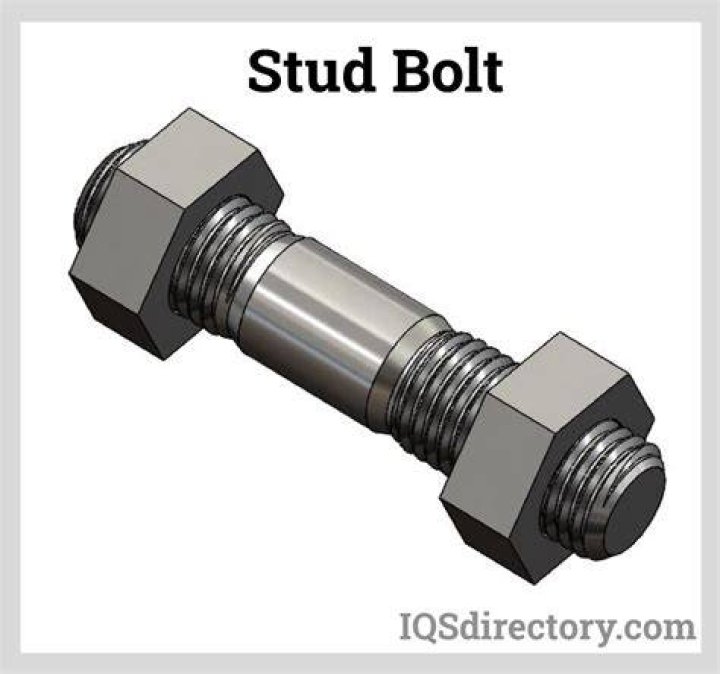

What is a stud bolt? Stud bolts for flanges consist of a fully threaded steel rod and two heavy hexagonal steel nuts. Stud bolts are inserted in the flange holes and tightened to seal a flanged joint.Why are bolts used?
The defining distinction, per Machinery's Handbook, is in their intended purpose: Bolts are for the assembly of two unthreaded components, with the aid of a nut. Screws in contrast are used in components which contain their own thread, and the screw may even cut its own internal thread into them.What is stud size?
Definition. Stud sizes are expressed as: (Diameter of the Stud) x (Thread Count) for US fasteners. OR. (Diameter of the Stud) x (Thread Pitch) for metric fasteners.How do you tighten a stud bolt?
You take 2 nuts and put them on the same set of threads. Then lock them against each other by loosening the lower nut and tightening the upper nut. Then use the upper nut with your torque wrench to install the stud.Can you drive a car with a missing lug nut?
If you are missing a lug nut, it is important to have it replaced as soon as possible. It is potentially dangerous to drive around with a missing lug nut because of the extra pressure exerted on the wheel. This pressure can damage the wheel bearings, studs, and cause other lug nuts to fall off.What grade is threaded rod?
Steel Threaded Rod Grades and SpecificationsThe most common steel threaded rod, classified as ASTM A307, is Grade 2 threaded rod made from low carbon steel. The stronger and more heat resistant Grade 5 threaded rod is made of medium carbon steel quenched and tempered. It is classified as ASTM A449.Can I use bolts instead of studs?
The use of studs (instead of bolts) offers convenience throughout the engine, where applicable. Another advantage of using studs is that you don't need to worry about insufficient clamping load because a too-long bolt bottomed out in its hole. The stud is stationary, and clamping load is achieved by tightening the nut.What is UNC stud bolts?
ASTM A193 stud bolts are available in national coarse (UNC) thread pitches, generally used in traditional applications, which means that there are 8 threads per inch (“thread per inch”) for rod diameters above 1 inch. B7 is the most common specification grade for stud bolts.What is the difference between metric and standard bolts?
For both metric and standard bolts, the head size is the distance across the flats. For standard bolts, the head size is measured in inches or fractions of an inch. For metric bolts, head size is measured in millimeters. However, metric bolt head size is measured in millimeters.How do you fix a wheel stud?
Rotate the hub until you find a deep recess so you can angle the stud into the hole. Then pull it through. Next, place a bunch of washers over the stud and spin on the lug nut. Crank down on the lug nut to pull the staked portion of the new stud into the hub (Photo 2).Why is it called a lug nut?
The lug that shows up in lug nut or lug wrench doesn't seem to be directly connected. Instead, it comes from a word that meant a projecting part.How do wheel studs break?
On stud-piloted wheel systems, the most common reason studs break is low torque. When the wheel system is loose, the wheels ride on the studs and break them. Overtorquing the studs and yielding them will also result in loose wheels that break studs for the same reason.How much is a lug nut stud?
The average cost for a wheel lug stud replacement is between $103 and $128. Labor costs are estimated between $90 and $115 while parts are priced at $13.Are Nuts and Bolts the same?
Nuts with National Coarse threads typically have 5 threads in them, whereas nuts with National Fine threads have about 8 threads. Nuts are usually stronger than the bolts they are on, which is to say that the bolt will usually break before the nut strips. It is often said that two threads must be exposed above a nut.
